Match 3 - After the prototype

Complexity: low Game Tutorial

Outcome / Goals

In this tutorial we’ll:

• Convert our prototype code into a more structured game
• add a GridInput and GridVisuals system to do so

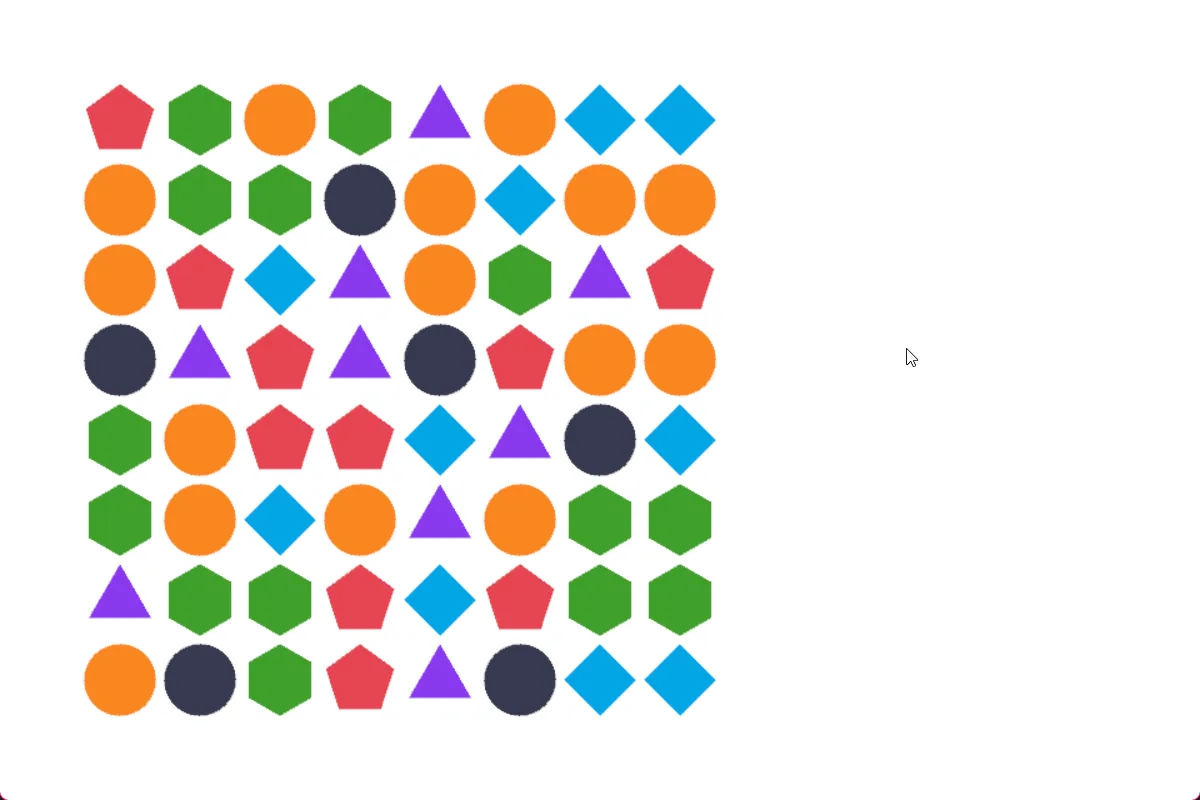

See it in motion

Part 3 is largely about re-organizing our code into a neater structure.

Grid Input ownership

Instead of having a bunch of code inside our grid logic tick function, we can move the logic into a modifier dedicated to handling input for the grid.

This allows the input handling to be more nuanced, exposing it’s own API and tools for the game to use without muddying up the grid logic.

Note

We use the word ownership because thinking about which code/system owns a responsibility helps keep our code well structured.

Grid changes

The grid doesn’t really care about input specifically, it cares about a cursor location and a selected location.

We’ll start by changing our grid.modifier.wren, specifically the Data class, to add a cursor:

system/grid.modifier.wren...Data

... //existing code

#doc = "Currently selected cell"
var selected: Float2 = [-1,-1]
#doc = "Currently highlighted cell"
var cursor: Float2 = [-1,-1]

This allows us to set the cursor from the grid input system.

The Grid API

We’ll also need to speak to the grid from elsewhere in our game, which is what the API class is for! There’s a few pieces of the puzzle that we’ll need.

Iterative change

We’re making changes now that are going to be moved around soon after. This is natural, code is squishy! We’d like to keep the game working while we iterate, that’s why we’re doing this in steps.

It would be nice to be able to convert coordinates to the grid, check if a coordinate is within the grid space, and interact with the grid (e.g a select, or swap). We’d also need to know if a cell was busy.

The API class is the user facing interface to our system.

What that means is:

• We should name things clearly
• We should add type annotations to describe our intention
• We should add documentation to the endpoints

Speaking to our system from API

Inside our API we have a few helpers to access our system or data for an entity.

• system(entity: Entity) : System
  • get our system code from an entity with Grid attached
• system_in(world: World) : System
  • get our system in the given world
• get(entity: Entity) : Data
  • return the data for the given entity

This gives us the tools to communicate with the entity, or system based on common inputs to a system.

Wrap or not to wrap?

It’s common for an API function to be a nicer way to access our system or data.

So a question that comes up: does the logic happen in the API class directly, or do we put all the logic inside the system, and simply forward the call?

This is really a personal choice! We often wrap the system (like below) and keep all implementation details inside the System class, but there’s definitely been cases where we have inline API code.

The API additions

Add the following to the our API class:

system/grid.modifier.wren...Grid

class Grid is API {

  #doc = "Convert a world space position to grid cell coordinates"
  static world_to_grid(entity: Entity, world_x: Num, world_y: Num) : Float2 {

    if(!Grid.has(entity)) return [0, 0]

    var system: System = system(entity)
    var data: Data = get(entity)

    return system.world_to_grid(data, world_x, world_y)

  } //world_to_grid

  #doc = "Convert a grid coordinate to world space position"
  static grid_to_world(entity: Entity, grid_x: Num, grid_y: Num) : Float2 {

    if(!Grid.has(entity)) return [0, 0]

    var system: System = system(entity)
    var data: Data = get(entity)

    return system.grid_to_world(data, grid_x, grid_y)

  } //grid_to_world

  #doc = "Returns a busy task from the given coordinate, if any"
  static get_busy(entity: Entity, grid_x: Num, grid_y: Num) : Busy {

    if(!Grid.has(entity)) return null

    var system: System = system(entity)

    return system.busy_cells["%(grid_x)-%(grid_y)"]

  } //get_busy

  #doc = "Returns true if the given grid coordinates are within the grid"
  static in_grid(entity: Entity, grid_x: Num, grid_y: Num) : Bool {

    if(!Grid.has(entity)) return false

    var system: System = system(entity)
    var data: Data = get(entity)

    return system.in_grid(data, grid_x, grid_y)

  } //in_grid

  #doc = "Interact with the grid, selecting or swapping as needed"
  static interact(entity: Entity) : None {

    if(!Grid.has(entity)) return

    var system: System = system(entity)
    system.interact(entity)

  } //interact

} // Grid

The implementation details

Now that we’ve exposed an API forwarding calls to our system, we should add the implementation details for those functions.

The in_grid and coordinate functions already existed, so we only need one: interact.

Add the following function to your System class. Note that it takes the entity this time, and is a lot cleaner and easier to understand.

system/grid.modifier.wren...System

interact(entity: Entity) {

  var data: Data = get(entity)
  var cursor = data.cursor
  var selected = data.selected

  //trying to select the same cell? deselect and do nothing
  if(data.selected.x == cursor.x && data.selected.y == cursor.y) {
    data.selected = [-1, -1]
    return
  }

  //if we have a selection, and it's adjacent to the cursor, swap
  if(is_adjacent(selected.x, selected.y, cursor.x, cursor.y)) {
    swap(data, selected.x, selected.y, cursor.x, cursor.y)
    data.selected = [-1, -1]
    return
  }

  //no selection, and no swap, update our selection
  data.selected = [cursor.x, cursor.y]

} //interact

Cleaning up the tick function

Here’s the code we’ll be removing from the tick function in our grid System class:

system/grid.modifier.wren...System

// tick busy tasks
tick_busy(data, delta)

var grid_mouse = world_to_grid(data, mouse.x, mouse.y)
var valid_mouse = in_grid(data, grid_mouse.x, grid_mouse.y)

var selected = data.selected
var had_selected = selected.x != -1 && selected.y != -1
if(had_selected) {
  var selected_pos = grid_to_world(data, selected.x, selected.y)
  Draw.rect(draw,
    selected_pos.x, selected_pos.y, 0,
    block_width, block_height, 0, style.color(Color.pink))
}

if(valid_mouse) {
  var mouse_draw_pos = grid_to_world(data, grid_mouse.x, grid_mouse.y)
  Draw.rect(draw,
    mouse_draw_pos.x, mouse_draw_pos.y, 0,
    block_width, block_height, 0, style.color(Color.black))

  if(Input.mouse_state_released(MouseButton.left)) {
    if(had_selected) {
      var allow_swap = is_adjacent(selected.x, selected.y, grid_mouse.x, grid_mouse.y)
      if(selected.x == grid_mouse.x && selected.y == grid_mouse.y) {
        data.selected = [-1, -1]
      } else if(allow_swap) {
        swap(data, selected.x, selected.y, grid_mouse.x, grid_mouse.y)
        data.selected = [-1, -1]
      }
    } else {
      data.selected = grid_mouse
    }
  } //if left click

} //if valid mouse

for(y in 0 ... data.height) {

And here’s the code that will take it’s place:

system/grid.modifier.wren...System

// tick busy tasks
tick_busy(data, delta)

var selected = data.selected
var cursor = data.cursor

//if we have a selection, draw it
if(in_grid(data, selected.x, selected.y)) {
  var draw_pos = grid_to_world(data, selected.x, selected.y)
  Draw.rect(draw,
    draw_pos.x, draw_pos.y, 0,
    block_width, block_height, 0, style.color(Color.pink))
}

//if we have a cursor, draw that
if(in_grid(data, cursor.x, cursor.y)) {
  var draw_pos = grid_to_world(data, cursor.x, cursor.y)
  Draw.rect(draw,
    draw_pos.x, draw_pos.y, 0,
    block_width, block_height, 0, style.color(Color.black))
}

for(y in 0 ... data.height) {

That’s it for the grid changes! Let’s add the input system.

The input system

Create a new modifier for the grid input:

1. system/grid_input.modifier.wren

   Create an empty file named grid_input.modifier.wren in the system/ folder.

2. Run the build

   This will generate the contents for you to edit.

3. Edit details

   We update our system definition with some details.

     #api
     #display = "Match3 Grid Input"
     #desc = "**Input handling for Match 3 Grid**. Contains the mouse input handling and communicates it to the grid"
     #icon = "luxe: image/modifier/modifier.svg"
     class GridInput is API {
       //add public facing API here
     }

And like before, we attach it to the same entity as the grid. This is an assumption the input system will make.

Back inside of game.wren:

game.wren

import "system/grid.modifier" for Grid
import "system/grid_input.modifier" for GridInput

class Game is Ready {

  var grid: Entity = Entity.none

  construct ready() {

    super("ready! %(width) x %(height) @ %(scale)x")

    grid = Entity.create(world, "grid")
    Grid.create(grid)
    GridInput.create(grid)

  } //ready

The input handling logic

Back inside of grid_input.modifier.wren we’re going to need to add some imports at the top of the file:

system/grid_input.modifier.wren

import "luxe: input" for Input, MouseButton, Key
import "luxe: world" for Camera

//we'll speak to the grid API
import "system/grid.modifier" for Grid

And here’s our tick function, inside of System, inside the grid_input.modifier.wren file:

system/grid_input.modifier.wren...System

tick(delta: Num) {

  var mouse = Camera.screen_point_to_world(Camera.get_default(world), Input.mouse_x(), Input.mouse_y())
  var interact = Input.mouse_state_released(MouseButton.left)

  each {|entity: Entity, data: Data|

    var grid_mouse = Grid.world_to_grid(entity, mouse.x, mouse.y)

    //If the cursor is valid
    if(Grid.in_grid(entity, grid_mouse.x, grid_mouse.y)) {

      //set it before we interact, so it's up to date
      Grid.set.cursor(entity, grid_mouse)

      //Interact with the grid
      if(interact) {
        Grid.interact(entity)
      }

    } else {

      //If not inside the grid, just set it to a well known value
      Grid.set.cursor(entity, [-1, -1])

    }

  } //each

} //tick

We can now run the game, and nothing would have changed! It should work exactly the same. But, things are much cleaner and clearer.

Grid Visuals

The next thing we’re going to do is move our grid drawing into it’s own system.

Create a new system for that:

1. system/grid_visuals.modifier.wren

   Create an empty file named grid_visuals.modifier.wren in the system/ folder.

2. Run the build

   This will generate the contents for you to edit.

3. Edit details

   We update our system definition with some details.

     #api
     #display = "Match3 Grid Visuals"
     #desc = "**Visuals for a Match 3 Grid**. Handles displaying the grid state in the game"
     #icon = "luxe: image/modifier/modifier.svg"
     class GridVisuals is API {
       //add public facing API here
     }

And we’ll add it to the same entity just like before! We’ll also add a Transform, because we’re going to rely on that for positioning our grid in world space (Transform should already be imported).

Back inside of game.wren:

game.wren

import "system/grid.modifier" for Grid
import "system/grid_input.modifier" for GridInput
import "system/grid_visuals.modifier" for GridVisuals

class Game is Ready {

  var grid: Entity = Entity.none

  construct ready() {

    super("ready! %(width) x %(height) @ %(scale)x")

    grid = Entity.create(world, "grid")
    Grid.create(grid)
    GridInput.create(grid)
    GridVisuals.create(grid)

    Transform.create(grid)

  } //ready

The imports

Add these to the top of grid_visuals.modifier.wren.

We’ll speak to the grid, but we’ll also need the Busy task class!

system/grid_visuals.modifier.wren

import "luxe: draw" for Draw, PathStyle
import "luxe: color" for Color

import "system/grid.modifier" for Grid, GridRow, Busy

The data

In our debug visualization / prototype version of the visuals, we held some values like block_width, and grid_left in the system.

Now that we’re organizing into a more structured approach, this becomes data on our visuals system, so that it becomes configurable. The grid_left/grid_bottom are now going to be controlled by a Transform on the visual entity, so we can skip those.

system/grid_visuals.modifier.wren...Data

#block = data
class Data {
  var block_width: Num = 64
  var block_height: Num = 64
}

The grid visuals API

Iterative change

Like before, we’re going to work iteratively, making changes that keep things working, and then iterate!

The visuals own the concept of block size, because it’s not related to the logical gameplay grid, but purely a visual concern. The functions in Grid that we had, world_to_grid and the inverse, are all visual related and use those values. They belong in this system!

Inside grid.modifier.wren we change the Grid API class, removing those endpoints:

system/grid.modifier.wren...Grid

class Grid is API {

  #doc = "Convert a world space position to grid cell coordinates"
  static world_to_grid(entity: Entity, world_x: Num, world_y: Num) : Float2 {

    if(!Grid.has(entity)) return [0, 0]

    var system: System = system(entity)
    var data: Data = get(entity)

    return system.world_to_grid(data, world_x, world_y)

  } //world_to_grid

  #doc = "Convert a grid coordinate to world space position"
  static grid_to_world(entity: Entity, grid_x: Num, grid_y: Num) : Float2 {

    if(!Grid.has(entity)) return [0, 0]

    var system: System = system(entity)
    var data: Data = get(entity)

    return system.grid_to_world(data, grid_x, grid_y)

  } //grid_to_world

  #doc = "Returns a busy task from the given coordinate, if any"
  static get_busy(entity: Entity, grid_x: Num, grid_y: Num) : Busy {

And we add those directly to the GridVisuals API class inside grid_visuals.modifier.wren:

system/grid_visuals.modifier.wren...GridVisuals

class GridVisuals is API {

  #doc = "Convert a world space position to grid cell coordinates"
  static world_to_grid(entity: Entity, world_x: Num, world_y: Num) : Float2 {

    if(!Grid.has(entity)) return [0, 0]

    var system: System = system(entity)
    var data: Data = get(entity)

    return system.world_to_grid(data, world_x, world_y)

  } //world_to_grid

  #doc = "Convert a grid coordinate to world space position"
  static grid_to_world(entity: Entity, grid_x: Num, grid_y: Num) : Float2 {

    if(!Grid.has(entity)) return [0, 0]

    var system: System = system(entity)
    var data: Data = get(entity)

    return system.grid_to_world(data, grid_x, grid_y)

  } //grid_to_world

}

And of course we should bring the system changes over next!

The grid visuals System

First we remove (cut) these variables from System inside grid.modifier.wren:

system/grid.modifier.wren...System

class System is Modifier {

  var rng: Random = Random.new()

  //our busy handling
  var fiber: Fiber = null
  var busy_cells = {}

  //debug visualization
  var draw: Draw = null
  var style: PathStyle = PathStyle.new()
  var grid_left = 100
  var grid_bottom = 64
  var block_width = 64
  var block_height = 64
  var sides = [32, 3, 4, 5, 6, 32]
  var colors = [
    Color.hex_code( "#363a4f" ), //1
    Color.hex_code( "#8839ef" ), //2
    Color.hex_code( "#04a5e5" ), //3
    Color.hex_code( "#e64553" ), //4
    Color.hex_code( "#40a02b" ), //5
    Color.hex_code( "#fa8621" ), //6
  ]

Then we can paste them into our System class inside grid_visuals.modifier.wren. We remove the block size here as we’re moved that into our user facing Data.

system/grid_visuals.modifier.wren...System

class System is Modifier {

  //debug visualization
  var draw: Draw = null
  var style: PathStyle = PathStyle.new()
  var grid_left = 100
  var grid_bottom = 64
  var block_width = 64
  var block_height = 64
  var sides = [32, 3, 4, 5, 6, 32]
  var colors = [
    Color.hex_code( "#363a4f" ), //1
    Color.hex_code( "#8839ef" ), //2
    Color.hex_code( "#04a5e5" ), //3
    Color.hex_code( "#e64553" ), //4
    Color.hex_code( "#40a02b" ), //5
    Color.hex_code( "#fa8621" ), //6
  ]

We also move the init of the Draw context from grid.modifier.wren to grid_visuals.modifier.wren

system/grid.modifier.wren...System

init(world: World) {
  Log.print("init `%(This)` in world `%(world)`")

  draw = Draw.create(World.render_set(world))
  style.color = Color.black
  style.thickness = 4
}

system/grid_visuals.modifier.wren...System

init(world: World) {
  Log.print("init `%(This)` in world `%(world)`")

  draw = Draw.create(World.render_set(world))
  style.color = Color.black
  style.thickness = 4
}

Conversion helpers

We also move the world_to_grid/grid_to_world from grid.modifier.wren to grid_visuals.modifier.wren

system/grid.modifier.wren...System

  world_to_grid(data: Data, x: Num, y: Num) {
    var grid_h = data.height * block_height
    var grid_x = ((x - grid_left) / block_width).floor
    var grid_y = ((y - grid_bottom) / block_height).floor
    //now invert the Y because we were in y+ up world
    grid_y = (data.height - 1) - grid_y

    return [grid_x, grid_y]
  }

  grid_to_world(data: Data, x: Num, y: Num) {
    //we subtract because y+ is up,
    //and we add 1 because we want the bottom left
    //(not top left) for world space!
    return [
      grid_left + (x * block_width),
      grid_bottom + ((data.height - y - 1) * block_height)
    ]
  }

We can’t use them directly, so we need to make some modifications after copy/pasting the code.

• data: Data has changed to mean ‘the visual Data’
• data.height was the grid logical height, we fetch that from Grid
• we keep grid_left and grid_bottom (for now)

system/grid_visuals.modifier.wren...System

world_to_grid(data: Data, x: Num, y: Num) {
  var logical_height = Grid.get.height(data.entity)
  var grid_h = logical_height * data.block_height
  var grid_x = ((x - grid_left) / data.block_width).floor
  var grid_y = ((y - grid_bottom) / data.block_height).floor
  //now invert the Y because we were in y+ up world
  grid_y = (logical_height - 1) - grid_y

  return [grid_x, grid_y]
}

grid_to_world(data: Data, x: Num, y: Num) {
  var logical_height = Grid.get.height(data.entity)
  //we subtract because y+ is up,
  //and we add 1 because we want the bottom left
  //(not top left) for world space!
  return [
    grid_left + (x * data.block_width),
    grid_bottom + ((logical_height - y - 1) * data.block_height)
  ]
}

The actual drawing

And we need to move the actual drawing out of our System class in grid.modifier.wren. You should cut everything and leave it with just the grid specifics, like this:

system/grid.modifier.wren...System

  tick(delta: Num) {

    each {|entity: Entity, data: Data|

      // tick busy tasks
      tick_busy(data, delta)

    } //each entity

  } //tick

}

And we paste the drawing contents into our tick function in grid_visuals.modifier.wren. Like before we have to change the code a little to fit its new home!

• We use Grid.get.* to fetch grid data we need
• We use data.block_width/data.block_height

Here’s the complete tick function after the changes:

system/grid_visuals.modifier.wren...System

tick(delta: Num) {

  each {|entity: Entity, data: Data|

    var grid_width = Grid.get.width(entity)
    var grid_height = Grid.get.height(entity)
    var grid_rows = Grid.get.rows(entity)

    var selected = Grid.get.selected(entity)
    var cursor = Grid.get.cursor(entity)
    var block_width = data.block_width
    var block_height = data.block_height

    //if we have a selection, draw it
    if(Grid.in_grid(entity, selected.x, selected.y)) {
      var draw_pos = grid_to_world(data, selected.x, selected.y)
      Draw.rect(draw,
        draw_pos.x, draw_pos.y, 0,
        block_width, block_height, 0, style.color(Color.pink))
    }

    //if we have a cursor, draw that
    if(Grid.in_grid(entity, cursor.x, cursor.y)) {
      var draw_pos = grid_to_world(data, cursor.x, cursor.y)
      Draw.rect(draw,
        draw_pos.x, draw_pos.y, 0,
        block_width, block_height, 0, style.color(Color.black))
    }

    for(y in 0 ... grid_height) {

      var row: GridRow = grid_rows[y]

      for(x in 0 ... grid_width) {

        var kind = row.columns[x]
        if(kind == 0) continue

        var y_offset = 0
        var x_offset = 0
        var scale = 1

        var busy: Busy = Grid.get_busy(entity, x, y)
        if(busy) {
          // how far into the wait are we?
          // this is a 0...1 range value
          var ratio = busy.timer / busy.wait

          if(busy.kind == Busy.DESTROY) {
            // since we're destroying, scale down from 1
            // and don't let it go too small
            scale = ( 1.0 - ratio ).max(0.1)
          }

          if(busy.kind == Busy.CREATE) {
            // since we're creating, scale from from 0 to 1
            scale = ratio.max(0.1)
          }

          if(busy.kind == Busy.MOVE) {
            var distance = block_height * (busy.dest_y - busy.y)
            y_offset = distance * ratio
          }

          if(busy.kind == Busy.SWAP) {
            var dist_x = block_width * (busy.dest_x - busy.x)
            var dist_y = block_height * (busy.dest_y - busy.y)
            x_offset = dist_x * ratio
            y_offset = dist_y * ratio
          }
        }

        var pos = grid_to_world(data, x, y)
            pos.x = pos.x + x_offset
            pos.y = pos.y - y_offset
        var color = colors[kind - 1]
        var sides = sides[kind - 1]
        var half_width = block_width / 2
        var half_height = block_height / 2
        var radius_x = half_width * 0.9 * scale
        var radius_y = half_height * 0.9 * scale

        Draw.ngon_solid(draw, pos.x + half_width, pos.y + half_height, 0, radius_x, radius_y, sides, 90, color)

      } //each column

    } //each row

  } //each

  Draw.commit(draw)

}

The GridInput changes

Since we moved the world_to_grid into our GridVisuals, we should use that from GridInput instead.

At the top of grid_input.modifier.wren add this line:

grid_input.modifier.wren

import "system/grid.modifier" for Grid
import "system/grid_visuals.modifier" for GridVisuals

And then the changes to the tick function, using the new API instead:

grid_input.modifier.wren...System

  tick(delta: Num) {

    var mouse = Camera.screen_point_to_world(Camera.get_default(world), Input.mouse_x(), Input.mouse_y())
    var interact = Input.mouse_state_released(MouseButton.left)

    each {|entity: Entity, data: Data|

      var grid_mouse = GridVisuals.world_to_grid(entity, mouse.x, mouse.y)
      ...

Something for Nothing

If everything goes as planned, the game will be exactly the same. It feels like we did all that and nothing changed!

That’s a good feeling, it means everything is working but a lot cleaner to maintain and build on top of.

Brief detour: the Debug module

If we add the debug module to our project, and inspect our game world, we can select the grid entity and play with some of the values:

Because the visuals are drawn every frame and use the block size data we exposed, we can change these and see the results in realtime for fun.

Using Transform

Inside grid_visuals.modifier.wren we can add Transform to the world import:

system/grid_visuals.modifier.wren

import "luxe: world" for Entity, World, Transform

We can remove these two variables from System

system/grid_visuals.modifier.wren...System

class System is Modifier {

  //debug visualization
  var draw: Draw = null
  var style: PathStyle = PathStyle.new()
  var grid_left = 100
  var grid_bottom = 64

And we add them locally to our conversion helpers, using Transform this time:

system/grid_visuals.modifier.wren...System

world_to_grid(data: Data, x: Num, y: Num) {
  var grid_left = Transform.get_pos_x_world(data.entity)
  var grid_bottom = Transform.get_pos_y_world(data.entity)
  var logical_height = Grid.get.height(data.entity)
  var grid_h = logical_height * data.block_height
  var grid_x = ((x - grid_left) / data.block_width).floor
  var grid_y = ((y - grid_bottom) / data.block_height).floor
  //now invert the Y because we were in y+ up world
  grid_y = (logical_height - 1) - grid_y

  return [grid_x, grid_y]
}

grid_to_world(data: Data, x: Num, y: Num) {
  var grid_left = Transform.get_pos_x_world(data.entity)
  var grid_bottom = Transform.get_pos_y_world(data.entity)
  var logical_height = Grid.get.height(data.entity)
  //we subtract because y+ is up,
  //and we add 1 because we want the bottom left
  //(not top left) for world space!
  return [
    grid_left + (x * data.block_width),
    grid_bottom + ((logical_height - y - 1) * data.block_height)
  ]
}

And finally back in game.wren we can change the Transform now with a different value:

game.wren

grid = Entity.create(world, "grid")
Grid.create(grid)
GridInput.create(grid)
GridVisuals.create(grid)

Transform.create(grid)
Transform.set_pos(grid, 64, 64)

This means we can position the grid in the world easily around other entities.

There’s one more step: the render depth. We used 0 in our tick function all along, but if we want the grid to co-exist with the world as is, we should update those. Update the tick function in grid_visuals.modifier.wren to use the depth whenever it speaks to the Draw tool:

system/grid_visuals.modifier.wren...System

each {|entity: Entity, data: Data|

  var grid_width = Grid.get.width(entity)
  var grid_height = Grid.get.height(entity)
  var grid_rows = Grid.get.rows(entity)

  var selected = Grid.get.selected(entity)
  var cursor = Grid.get.cursor(entity)
  var block_width = data.block_width
  var block_height = data.block_height
  var depth = Transform.get_depth2D_world(entity)

  //if we have a selection, draw it
  if(Grid.in_grid(entity, selected.x, selected.y)) {
    var draw_pos = grid_to_world(data, selected.x, selected.y)
    Draw.rect(draw,
      draw_pos.x, draw_pos.y, depth,
      block_width, block_height, 0, style.color(Color.pink))
  }

  //if we have a cursor, draw that
  if(Grid.in_grid(entity, cursor.x, cursor.y)) {
    var draw_pos = grid_to_world(data, cursor.x, cursor.y)
    Draw.rect(draw,
      draw_pos.x, draw_pos.y, depth,
      block_width, block_height, 0, style.color(Color.black))
  }

  for(y in 0 ... grid_height) {

    var row: GridRow = grid_rows[y]

    for(x in 0 ... grid_width) {
      ... //existing code

      Draw.ngon_solid(draw, pos.x + half_width, pos.y + half_height, depth, radius_x, radius_y, sides, 90, color)

    } //each column

  } //each row

This means if we changed our z value on the transform, it will respect it allowing us to put a background behind or things in front as expected.

Next time!

In the next part, we’re going to use the world systems to visualize the grid instead of directly with Draw.

Onto part 4!
